紙管捲管機
Paper Tube Winder
(HW-301B) 紙管捲管機
Paper Tube Winder
(HW-301D) 斜紋捲管機
Paper Tube Winder
(HW-301E) 紙管捲管機
Paper Tube Winder
(HW-301F) 紙架及上膠系統
Paper Roll Stand
and Gluing System 分條複捲機
Slitter and Rewinder
(HW-302A) 分條複捲機
Slitter and Rewinder
(HW-302E) 紙管切管機
Paper Tube Re-Cutter
(HW-303A) 紙管切管機
Paper Tube Re-Cutter
(HW-303/HW-303C) 直角板製造設備
Angular Cardboard
Making Machine
(HW-510-G10)

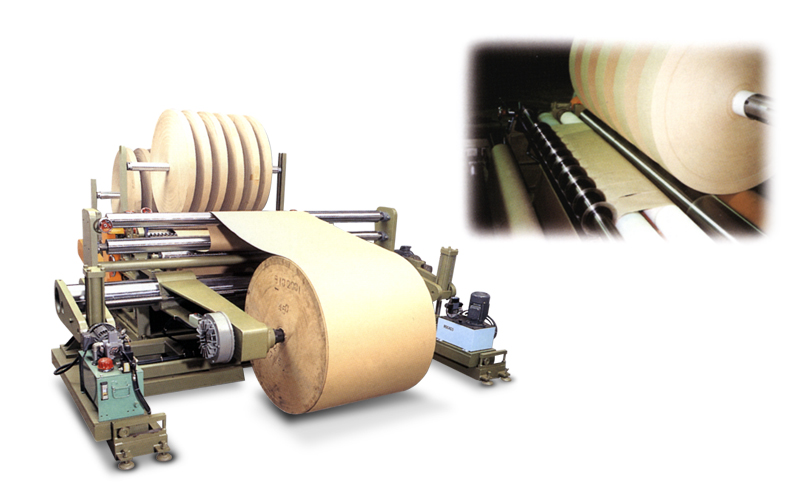

分條複捲機 Slitter and Rewinder ：

(HW-302A)

★ 高效率生產紙張的分條與複捲。
★ 單雙圓刀可選配以適用不同厚度紙張。
★ 油壓上料系統提供更方便的操作。
★ 張力控制器更精確控制放紙緊度。

★ HW-302 series provides you a efficient device for paper converting.
★ Score knife and shear knife can be chosen to adapt to the different paper thickness.
★ Hydraulic loading system provides a better handling of paper rolls.
★ Tension Controller ensures you the perfect tension control of unwinding.

HW-302A 分條複捲機
工作規格	HW-302A-L	HW-302A-M	HW-302A-S
適用紙卷寬度 :	<2,200 mm	<1,600 mm	<1,250 mm
適用紙卷外徑 :	<Ø1,500 mm	<Ø1,50 mm	<Ø1,500 mm
適用複捲外徑 :	<Ø1,200 mm	<Ø1,200 mm	<Ø1,200 mm
生產速度 :	10-250 M/min	10-250 M/min	10-250 M/min
複捲形式 :	雙軸複捲 / 表面捲取	雙軸複捲 / 表面捲取	雙軸複捲 / 表面捲取
邊緣位置控制 :	Full functioned	Full functioned	Full functioned
油壓巨型滾輪上料 :	Full functioned	Full functioned	Full functioned
巨型滾輪張力控制器 :	Full functioned	Full functioned	Full functioned
下料系統 :	Hoist (excludes)	Hoist (excludes)	Hoist (excludes)

HW-302A Slitter and Rewinder
WORKING SPECIFICATION	HW-302A-L	HW-302A-M	HW-302A-S
Applicable Width (Jumbo Roll) :	<2,200 mm	<1,600 mm	<1,250 mm
Applicable O.D. (Jumbo Roll) :	<Ø1,500 mm	<Ø1,50 mm	<Ø1,500 mm
Applicable Rewinding O.D. :	<Ø1,200 mm	<Ø1,200 mm	<Ø1,200 mm
Production Speed :	10-250 M/min	10-250 M/min	10-250 M/min
Rewinding Shaft :	Double shafts	Double shafts	Double shafts
Edge Position Controller :	Full functioned	Full functioned	Full functioned
Hydraulic Jumbo Roll Loader :	Full functioned	Full functioned	Full functioned
Jumbo Roll Tension Controller :	Full functioned	Full functioned	Full functioned
Unloading System :	Hoist (excludes)	Hoist (excludes)	Hoist (excludes)
