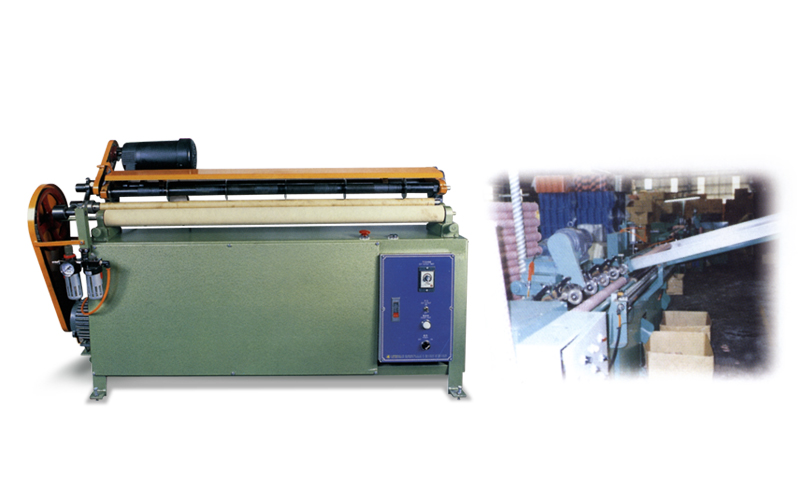

紙管切管機 Paper Tube Re-Cutter ：
(HW-303B/HW-303C)
★ 切管機使用於長型紙管的再切段或端口的修齊。
★ 圓切刀提供完全平整的切口及精確的切斷長度。
★ HW-303B氣壓式退管提供高生產力的膠帶紙心成品。
★ 圓切刀提供完全平整的切口及精確的切斷長度。
★ HW-303B氣壓式退管提供高生產力的膠帶紙心成品。
★ Paper Tube Re-Cutter is provided for further cutting of long paper tube.

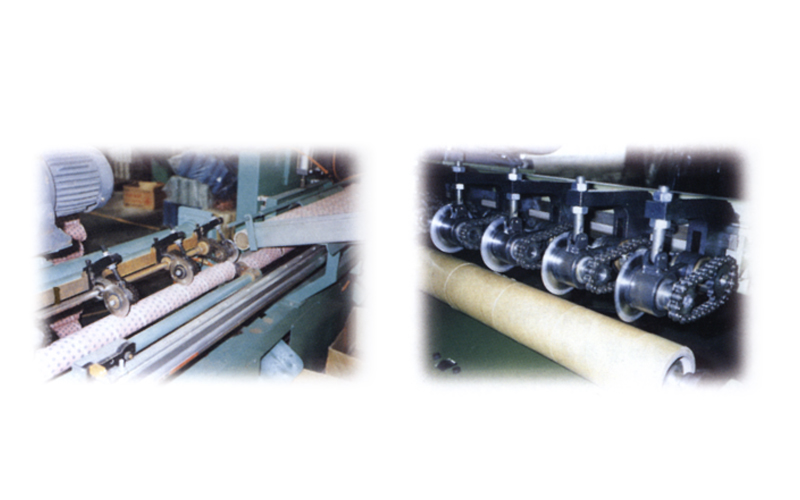

★ Score knife cutting gives the perfect and neat cut edge of desired short tube.
★ Air discharging of HW-303B offers higher productivity of OPP tape core.
★ Score knife cutting gives the perfect and neat cut edge of desired short tube.
★ Air discharging of HW-303B offers higher productivity of OPP tape core.
| HW-303B/HW-303C 紙管切管機 | |||
|---|---|---|---|
| 工作規格 | HW-303B-L | HW-303C-M | HW-303C-S |
| 適用紙管內徑 : | Ø25-156 mm | Ø12-25 mm | Ø12-25 mm |
| 適用紙管厚度 : | 1-5 mm | 1-5 mm | 1-3 mm |
| 適用紙管長度 : | 600 mm | 1,200 mm | 800 mm |
| 最小切斷長度 : | 12 mm | 100 mm | 30 mm |
| 切斷刀具 : | 10 sets | 5 sets | 5 sets |
| HW-303B/HW-303C Paper Tube Re-Cutter | |||
|---|---|---|---|
| WORKING SPECIFICATION | HW-303B-L | HW-303C-M | HW-303C-S |
| Applicable I.D. of Paper Tube : | Ø25-156 mm | Ø12-25 mm | Ø12-25 mm |
| Applicable Wall Thickness : | 1-5 mm | 1-5 mm | 1-3 mm |
| Applicable Parent Tube Length : | 600 mm | 1,200 mm | 800 mm |
| Minimum Cutting Length : | 12 mm | 100 mm | 30 mm |
| Score Cutting Knife: | 10 sets | 5 sets | 5 sets |
