分條複捲機 Slitter and Rewinder ：

(HW-302E)

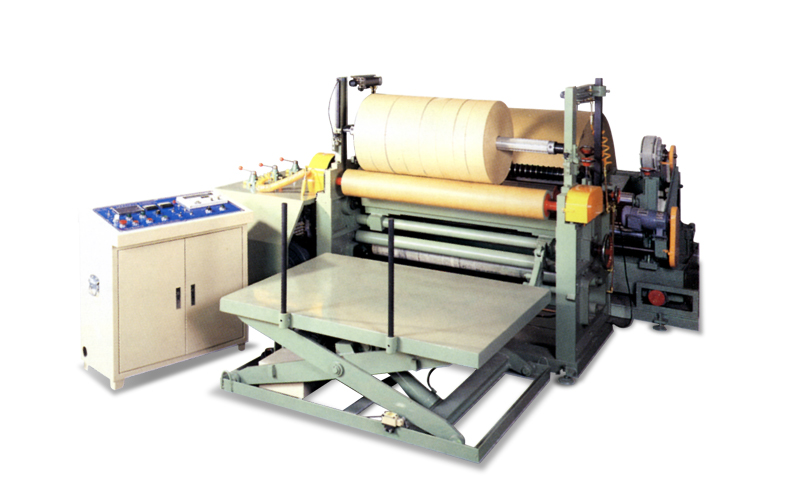

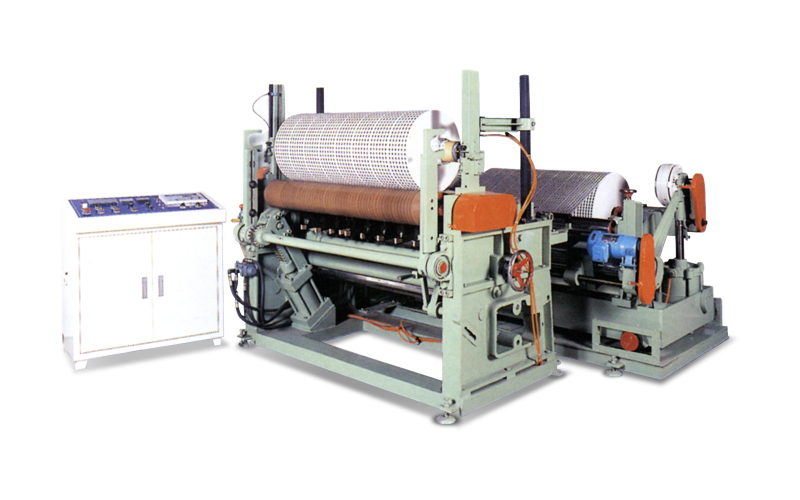

分條複捲機 Slitter and Rewinder (HW-302E) 分條複捲機 Slitter and Rewinder (HW-302E) 分條複捲機 Slitter and Rewinder (HW-302E)
★ 高效率生產紙張的分條與複捲。
★ 單雙圓刀可選配以適用不同厚度紙張。
★ 油壓上料系統提供更方便的操作。
★ 張力控制器更精確控制放紙緊度。
★ HW-302 series provides you a efficient device for paper converting.
★ Score knife and shear knife can be chosen to adapt to the different paper thickness.
★ Hydraulic loading system provides a better handling of paper rolls.
★ Tension Controller ensures you the perfect tension control of unwinding.
HW-302E 分條複捲機
工作規格 HW-302E-L HW-302E-M HW-302E-S HW-302ES-CR
適用紙卷寬度 : <2,200 mm <1,600 mm <1,250 mm <1,200 mm
適用紙卷外徑 : <Ø1,500 mm <Ø1,50 mm <Ø1,500 mm <Ø1,500 mm
適用複捲外徑 : <Ø1,200 mm <Ø1,200 mm <Ø1,200 mm <Ø1,000 mm
生產速度 : 10-250 M/min 10-250 M/min 10-250 M/min 10-350 M/min
複捲形式 : Single shaft Single shaft Single shaft Single shaft
邊緣位置控制 : Full functioned Full functioned Full functioned Full functioned
油壓巨型滾輪上料 : Full functioned Full functioned Full functioned Full functioned
巨型滾輪張力控制器 : Full functioned Full functioned Full functioned Full functioned
下料系統 : Full functioned Full functioned Full functioned Full functioned
HW-302E Slitter and Rewinder
WORKING SPECIFICATION HW-302E-L HW-302E-M HW-302E-S HW-302ES-CR
Applicable Width (Jumbo Roll) : <2,200 mm <1,600 mm <1,250 mm <1,200 mm
Applicable O.D. (Jumbo Roll) : <Ø1,500 mm <Ø1,50 mm <Ø1,500 mm <Ø1,500 mm
Applicable Rewinding O.D. : <Ø1,200 mm <Ø1,200 mm <Ø1,200 mm <Ø1,000 mm
Production Speed : 10-250 M/min 10-250 M/min 10-250 M/min 10-350 M/min
Rewinding Shaft : Single shaft Single shaft Single shaft Single shaft
Edge Position Controller : Full functioned Full functioned Full functioned Full functioned
Hydraulic Jumbo Roll Loader : Full functioned Full functioned Full functioned Full functioned
Jumbo Roll Tension Controller : Full functioned Full functioned Full functioned Full functioned
Unloading System : Full functioned Full functioned Full functioned Full functioned
