紙管切管機 Paper Tube Re-Cutter ：
(HW-510-G10)
| HW-510-G10 直角板製造設備 | |||
|---|---|---|---|
| 工作規格 | HW-510-G10 | ||
| 直角板適用尺寸 : | 30 x 30 mm ~ 100 x 100 mm | ||
| 直角板適用厚度 : | 3 ~ 10 mm | ||
| 直角板適用規格 : | 300 ~ 700 GMS | ||
| 直角板生產速度 : | under 5mm-25M/min ; 6~10mm-20M/min | ||
| 主機傳動馬達 : | 71/2HP | ||
| 電熱器總電能 : | |||
| 油壓式裁斷機: | 3 HP | ||
| 紙捲放紙架 : | 1set | ||
| 紙張上膠系統 : | 1 sets | ||
| 熱壓成形裝置 : | 2 sets | ||

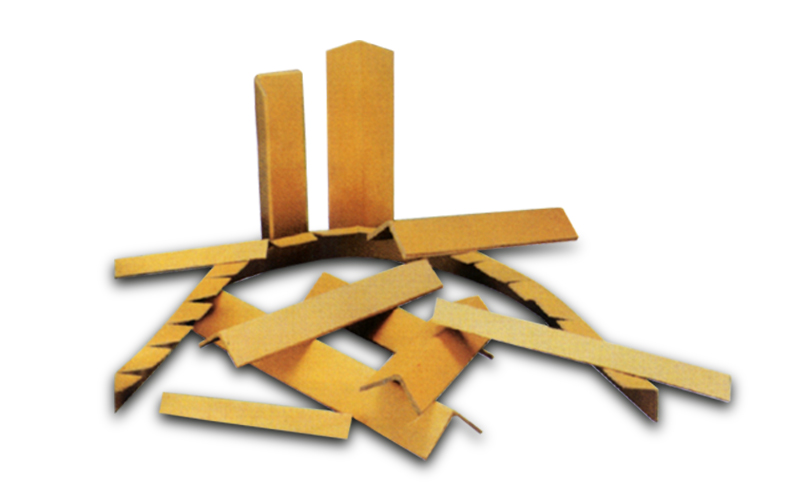

| HW-510-G10 Angular Cardboard Making Machine | |||
|---|---|---|---|
| SPECIFICATION | HW-510-G10 | ||
| Applicable size range : | 30 x 30 mm ~ 100 x 100 mm | ||
| Applicable thickness : | 3 ~ 10 mm | ||
| Applicable paper range : | 300 ~ 700 GMS | ||
| Production speed : | under 5mm-25M/min ; 6~10mm-20M/min | ||
| Main driving motor : | 71/2HP | ||
| Heater totally power : | |||
| Hydrauic cutting machune : | 3 HP | ||
| Paper roll stand : | 1set | ||
| Paper gluing system : | 1 sets | ||
| Forming & hot pressing unit : | 2 sets | ||
